Additional information
| Weight | 13.11 lbs |
|---|---|
| Dimensions | 12.80 × 6.69 × 7.09 in |
WG840746

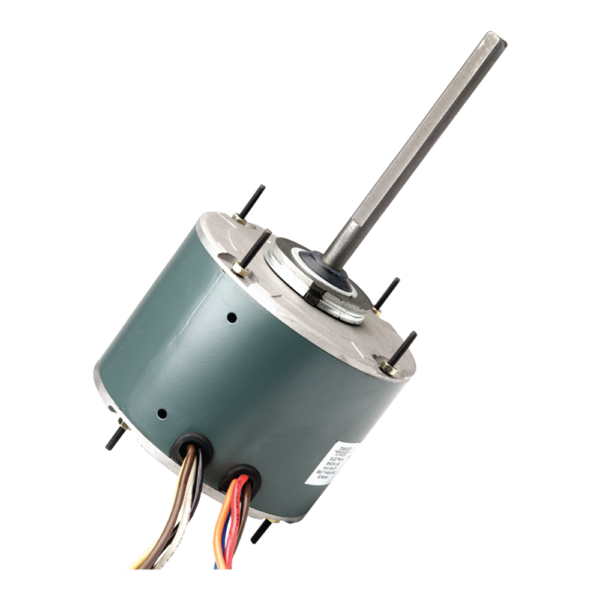

Condenser Fan Motor, 1/2HP, 825/1 RPM, 2.9 FLA, 208-230V, 60C Ambient
These motors install with all standard 48 frame mounting brackets. They are a quiet operator and electrically reversible. There is an Automatic Thermal Overload Protector and they have class B insulation. They have 30in. leads and 60 HZ with low power consumption. The motor has a standard 48 frame motor casing size and has drain holes with plugs on both end plates. There is a continuous air over on this motor and a 60 C Ambient Design with Extended Studs.
| Item | UPC/SCC | Width | Height | Depth | Weight | Sell Units Per |
|---|---|---|---|---|---|---|
| Unit | 0095247163137 | 6.69 | 7.09 | 12.80 | 13.11 | |
| Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| Master Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| Pallet | 50095247163132 | 48.00 | 41.00 | 48.00 | 1416.34 | 90 |
| HS Code | Country Of Origin | NAFTA Preference Criterion | NAFTA Producer Index |
|---|---|---|---|
| 8501.40.4040 | China | N | N |
