Additional information
| Weight | 18.80 lbs |
|---|---|
| Dimensions | 15.25 × 6.75 × 7.25 in |

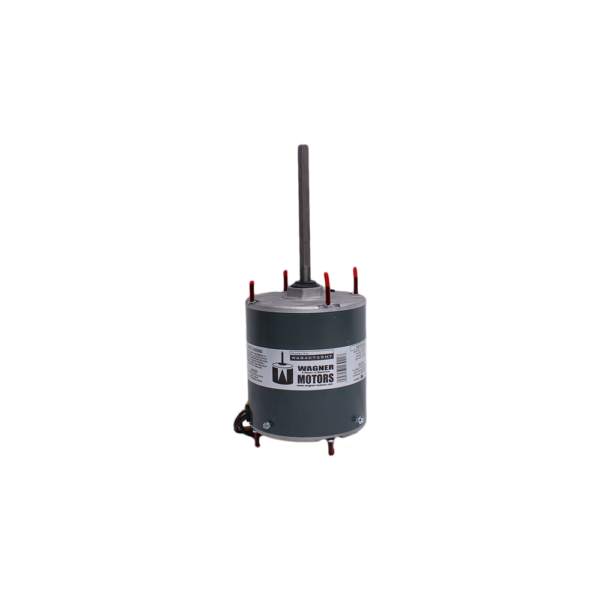

WG840739HT
Condenser Fan Motor, 3/4HP, 1075/1 RPM, 2.6FLA, 460V, 70C Ambient
These motors install with all standard 48 frame mounting brackets. They are a quiet operator and electrically reversible. There is an Automatic Thermal Overload Protector and they have class B insulation. They have 30in. leads and 60 HZ with low power consumption. The motor has a standard 48 frame motor casing size and has drain holes with plugs on both end plates. There is a continuous air over on this motor and a 70 C Ambient Design with Extended Studs.
| Item | UPC/SCC | Width | Height | Depth | Weight | Sell Units Per |
|---|---|---|---|---|---|---|
| Unit | 0095247139217 | 6.75 | 7.25 | 15.25 | 18.80 | |
| Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| Master Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| Pallet | 50095247139212 | 40.00 | 56.00 | 48.00 | 2747.20 | 90 |
| HS Code | Country Of Origin | NAFTA Preference Criterion | NAFTA Producer Index |
|---|---|---|---|
| 8501.40.4040 | China | N | N |
