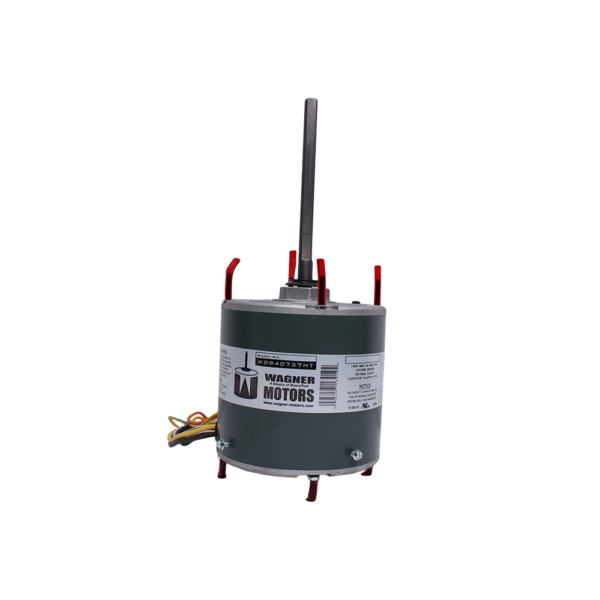

WG840738HT

Condenser Fan Motor, 1/2HP, 1075/1 RPM, 2.3FLA, 460V, 70C Ambient

These motors install with all standard 48 frame mounting brackets. They are a quiet operator and electrically reversible. There is an Automatic Thermal Overload Protector and they have class B insulation. They have 30in. leads and 60 HZ with low power consumption. The motor has a standard 48 frame motor casing size and has drain holes with plugs on both end plates. There is a continuous air over on this motor and a 70 C Ambient Design with Extended Studs.



Additional information

Weight 18.00 lbs
Dimensions 15.25 × 6.75 × 7.25 in
Item UPC/SCC Width Height Depth Weight Sell Units Per
Unit 00952471392006.757.2515.2518.00
Case 00.000.000.000.000
Master Case 00.000.000.000.000
Pallet 5009524713920540.0056.0048.002632.0090
HS Code Country Of Origin NAFTA Preference Criterion NAFTA Producer Index
8501.40.4040ChinaNN
