Additional information
| Weight | 14.00 lbs |
|---|---|
| Dimensions | 12.50 × 10.50 × 10.50 in |
6803

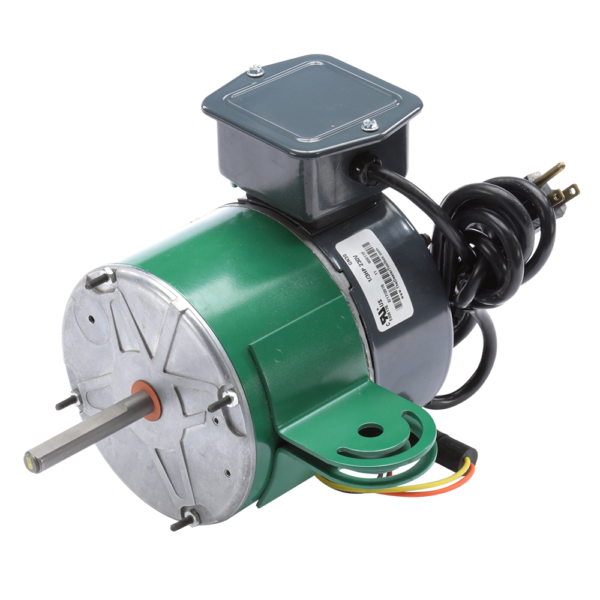

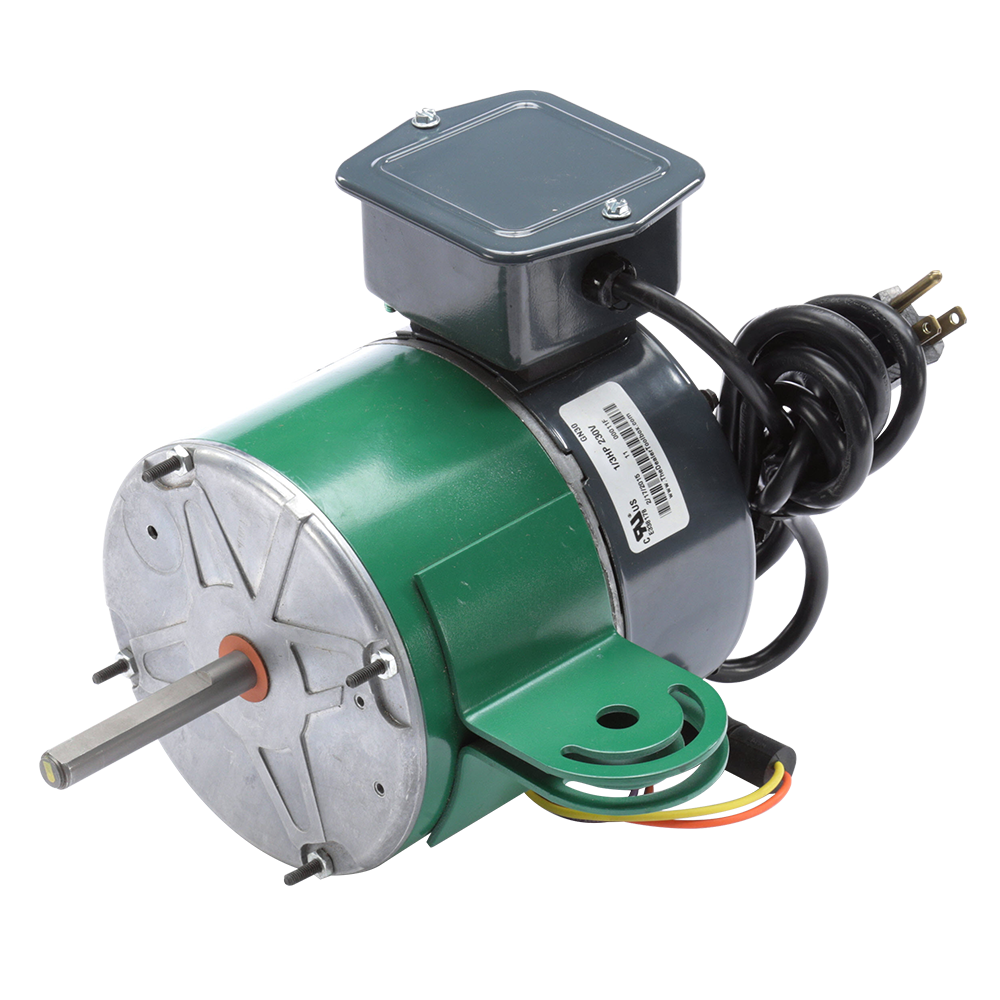

ECM motor 1/3HP 115V 5.8A 1160/970/650PRM 3-Spd 48-Frame. Replaces PSC and shaded pole pedestal and wall mount fan motors. Reversable rotation(reversing plug). Pull chain for easy speed selection.
The Evergreen PF is a drop-in replacement or proactive upgrade for pedestal and wall mount fan motors in warehouses, factory floors, ammusement parks, institutional buildings and other similar applications. With a rated efficiency of up to 82% and three operating speeds, Evergreen PF makes is easy to provide energy savings and reduce operating noise. It is easy for retrofit as it comes with a power cord, switch and welded mount. The Evergreen PF also includes a pull chain for easy speed selection from 1160/970/650 operating speeds.
6803
Regal Evergreen HVAC Motors from DiversiTech - Why is Genteq Evergreen right for me?
Regal Evergreen HVAC Motors from DiversiTech - Intro to Evergreen
Regal Evergreen HVAC Motors from DiversiTech - Why is Genteq Evergreen right for me?
Regal Evergreen HVAC Motors from DiversiTech - Intro to Evergreen
Regal Evergreen HVAC Motors from DiversiTech - Intro to Evergreen
| Item | UPC/SCC | Width | Height | Depth | Weight | Sell Units Per |
|---|---|---|---|---|---|---|
| Unit | 0815585023890 | 10.50 | 10.50 | 12.50 | 14.00 | |
| Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| Master Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| Pallet | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| HS Code | Country Of Origin | NAFTA Preference Criterion | NAFTA Producer Index |
|---|---|---|---|
| 8501.40.4040 | Mexico | N | N |
