Additional information
| Weight | 18.20 lbs |
|---|---|
| Dimensions | 13.00 × 6.75 × 7.25 in |
| Cross Reference | 00686109004707 |
WG840589

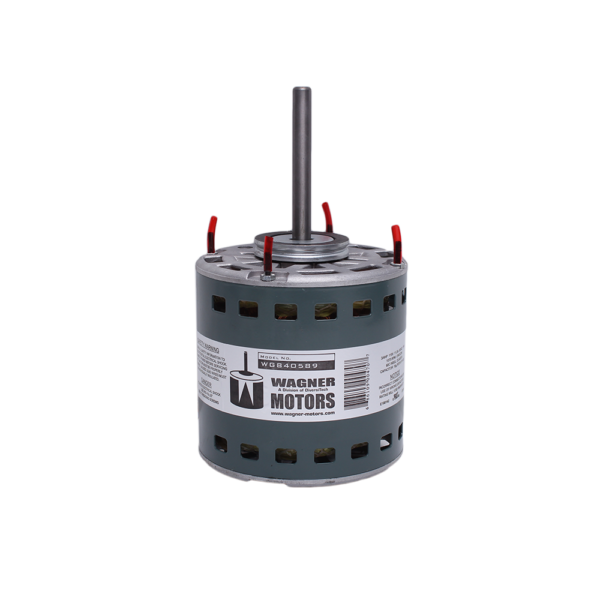

Direct Drive Furnace Blower Motor, 3/4HP, 1075/3 RPM, 11.3FLA, 115V
These motors install with all standard 48 frame mounting brackets. They are a quiet operator and electrically reversible. There is an Automatic Thermal Overload Protector and they have class B insulation. The speed is 1075/3 and 60 HZ with low power consumption. The motor uses a 370V Capacitor and has a standard 48 frame motor casing size. There is a continuous duty, air over on this motor and the 2.5in. diameter hub rings are included.
| Item | UPC/SCC | Width | Height | Depth | Weight | Sell Units Per |
|---|---|---|---|---|---|---|
| Unit | 0686109004707 | 6.75 | 7.25 | 13.00 | 18.20 | |
| Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| Master Case | 0 | 0.00 | 0.00 | 0.00 | 0.00 | 0 |
| Pallet | 50686109004702 | 41.00 | 42.00 | 47.00 | 1943.00 | 100 |
| HS Code | Country Of Origin | NAFTA Preference Criterion | NAFTA Producer Index |
|---|---|---|---|
| 0 | __ |
