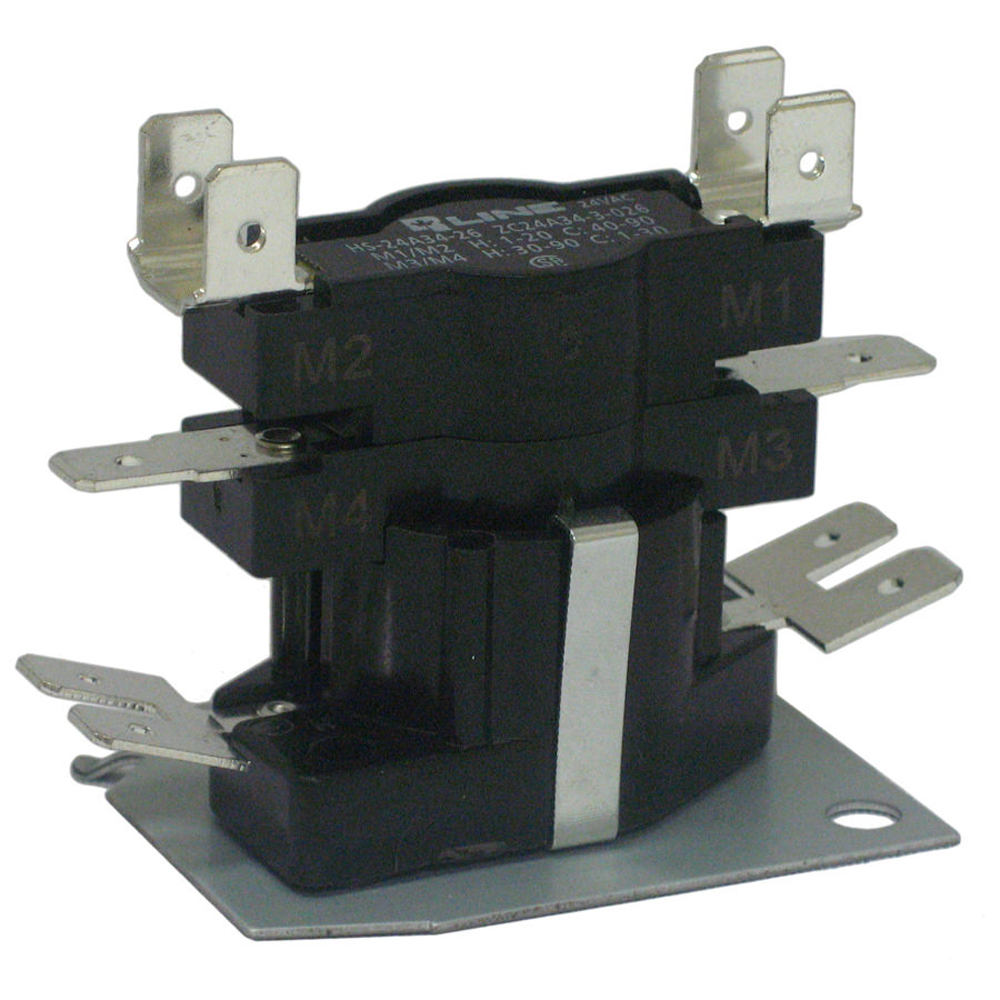

Heat Sequencer Standard Timings [Timings: 3 | Switches: 1]
Solid State PTC Heaters. Quick-Connect Terminals. Shock & Vibration Resistant. Mounts in any position. Applications: Electric Furnaces, baseboard heaters, duct heaters, suspension heaters, recreational vehicle blower and element control, heat pump blower and heating element control, motor speed switching in air conditioning ( high speed ) / heating systems handle combination motor and heater element loading in the heater function, , as well as control circuts requiring definite sequence on both start up and shut down.
Contact Ratings – to 25 Amps at 120 or 240 Volts, and 12.5A at 480 Volts. Combined Load Ratings (all models): 30A @ 240 VAC – Total: 23 A non-inductive + 7 FLA/42 LRA Inductive Life at rated current: 100,000 cycles. Standard Operating Ambience Between -50°F (-45.5°C) and 165°F (73.8°C).
