DDS-60U

60A non-fusible disconnect switch

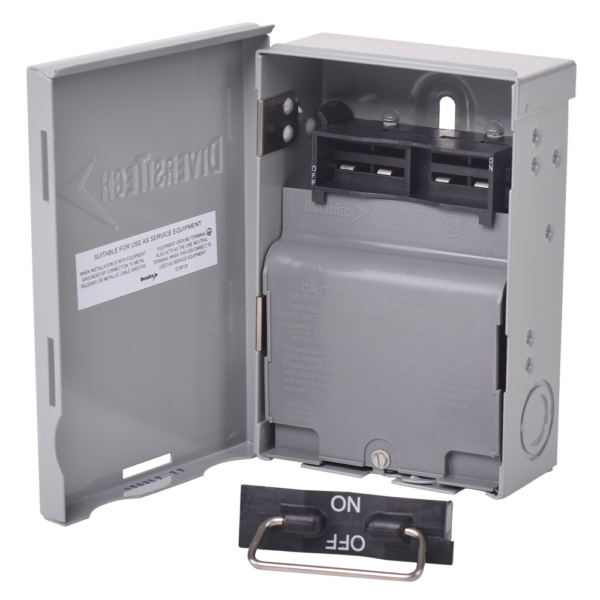

Fused model designed with fuses in pull-out handle for easy replacement. The line, load, and ground terminals are aligned for ease of wiring. This product has a reversible door which opens to either the left or right. The side open door opens more than 180 degrees for maximum access and has a full dead front. The fused models have indicator lights for blown fuses. This is rain tight and sleet resistant. The UL Listed number is IRF9, NEMA Type 3R and the US Patent is 6,630,637.



Additional information

Weight 2.44 lbs
Dimensions 2.50 × 5.00 × 7.50 in
Cross Reference

00095247082421

DDS-60U

DiversiTech Disconnect Switches

Item UPC/SCC Width Height Depth Weight Sell Units Per
Unit 00952470824215.007.502.502.44
Case 3009524708242211.008.5013.2024.4010
Master Case 00.000.000.000.000
Pallet 5009524708242640.0048.0048.001551.00600
HS Code Country Of Origin NAFTA Preference Criterion NAFTA Producer Index
8535908060ECN
