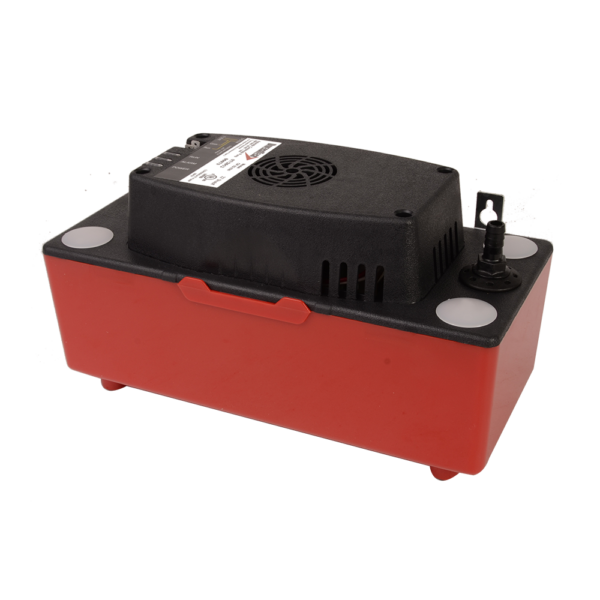

CP-22 Condensate Pump, 22ft. lift, 230V

Suitable for use with condensate from HVAC/R applications. 22ft of lift compared to the typical 20ft. Features include vibration dampening feet and motor mounts, metal hang tabs, four inlet holes, a clear indicator display, a float switch and check valve. Integrating the CP-22 into your system is easy. 1/4in. quick connect terminals provide easy connection to the built in overflow switch. Two Safety Switch terminals are provided to provide system shut-down as needed. The new CP-22LP comes packed with all the same great features found in the CP-22, but now in a low profile package. This pump is only 4 3/8in. tall so it’s a good fit for those instances where space is at a premium. The shorter reservoir holds 1/3 gallon. Suitable for use with condensate up to 160 degree F.


Additional information

Weight 5.53 lbs
Dimensions 12.00 × 6.00 × 6.75 in
Cross Reference



DiversiTech CP-22 Pump

Item UPC/SCC Width Height Depth Weight Sell Units Per
Unit 00952470929946.006.7512.005.53
Case 2009524709299812.2515.0018.7533.206
Master Case
Pallet 5009524709299940.0056.0048.001242.40126
HS Code Country Of Origin NAFTA Preference Criterion NAFTA Producer Index
