6905

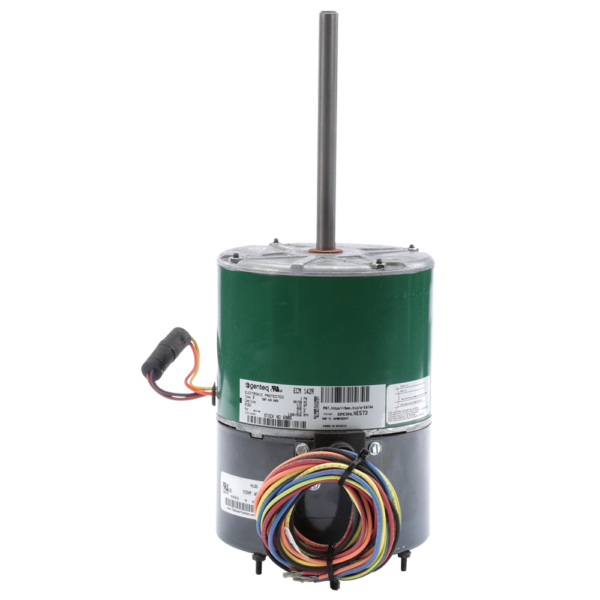

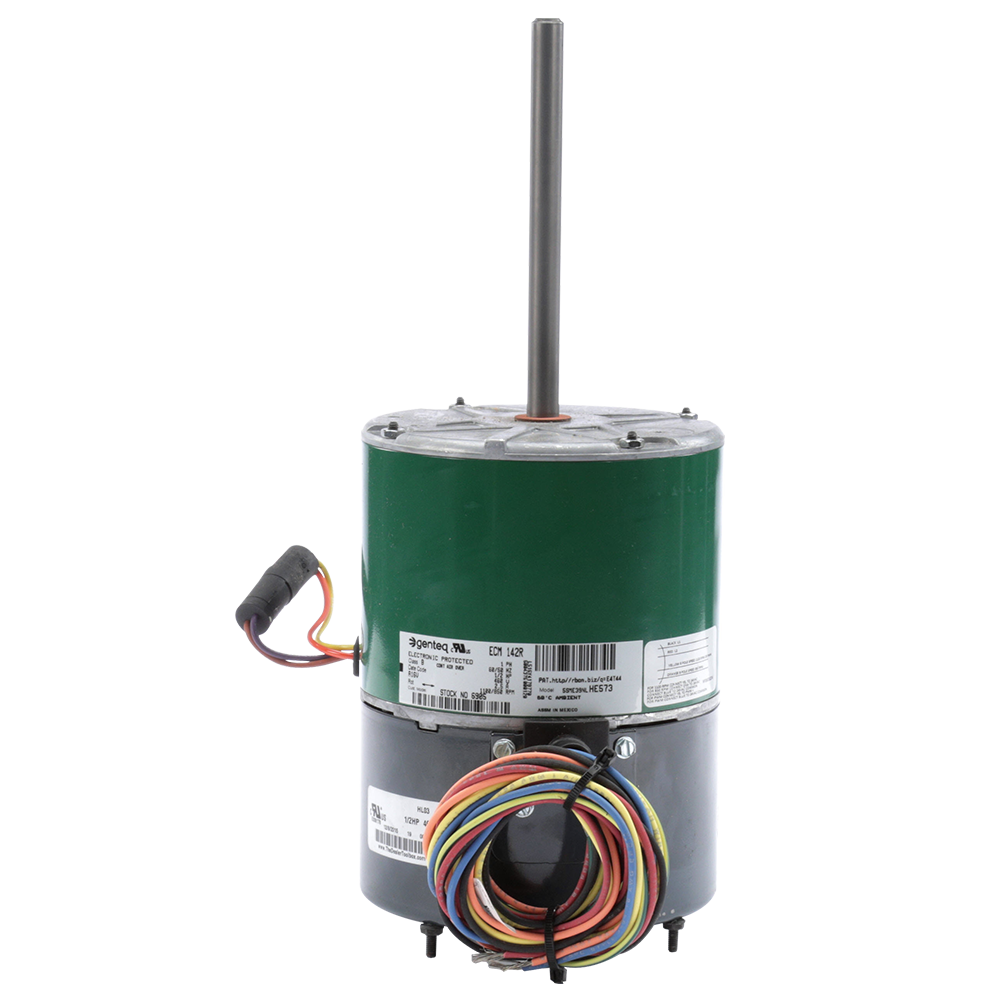

ECM motor 1/2HP 460V 2.5A 850/1075PRM 2-Spd 48-Frame. Replaces PSC outdoor fan motors. Automatically determines motor direction. Soft start and off ramp for quiet operation.

The Evergreen Outdoor Motor, also known as Evergreen OM, is designed for direct-drive fan propeller applications in residential systems up to 5-tons. Easily replaces 6 Pole (1,100 rpm rated) and 8 pole (850 rpm rated) shaded pole or PSC motors.



Additional information

Weight 17.25 lbs
Dimensions 13.57 × 5.58 × 5.58 in
Item UPC/SCC Width Height Depth Weight Sell Units Per
Unit 08155850239135.585.5813.5717.25
Case 00.000.000.000.000
Master Case 00.000.000.000.000
Pallet 00.000.000.000.000
HS Code Country Of Origin NAFTA Preference Criterion NAFTA Producer Index
8501.40.4040MexicoNN
